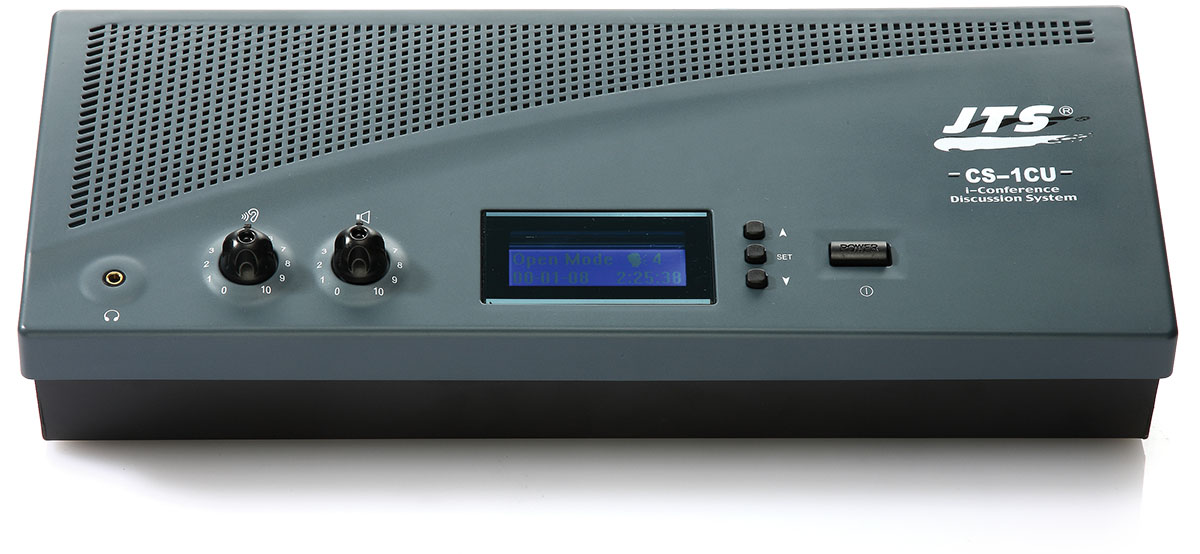

Conference System - Control Station and Power Supply Unit
The control unit is the center of the discussion system which controls the microphones of the chairman and delegate units as well as connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.
| Code: | 81610 |
| Voltage: | 100-240VAC, 50/60Hz |
| Current Consumption: | MAX 0.9A(100VAC) / 0.3A(240VAC) |
| DC Supply to contribution units: | ±15V |
| Line, telephone coupler and insertion in/outputs (unbalanced) : | |
| Input Sensitivity: | -14dBV/+11dBV (nominal/maximum) |
| Input Impedance: | 33KΩ |
| Output Level: | -14dBV/+11dBV (nominal/maximum) |
| Output Impedance: | 500Ω |
| Recorder in/output (unbalanced) : | |
| Input Sensitivity: | -20dBV/+5dBV (nominal/maximum) |
| Input Impedance: | 47KΩ (for L & R channel) |
| Adjustment: | -20dBV/+5dBV(nominal/maximum) |
| Output Level: | +0/-30dBV |
| Output Impedance: | 500Ω |
| External microphone input (XLR(F) balanced): | |
| Input Sensitivity: | -56dBV |
| Adjustment: | +6dBV/-6dBV(nominal/maximum) |
| Phantom Supply: | 12V+/-1V, 2*680Ω (±2%) |
