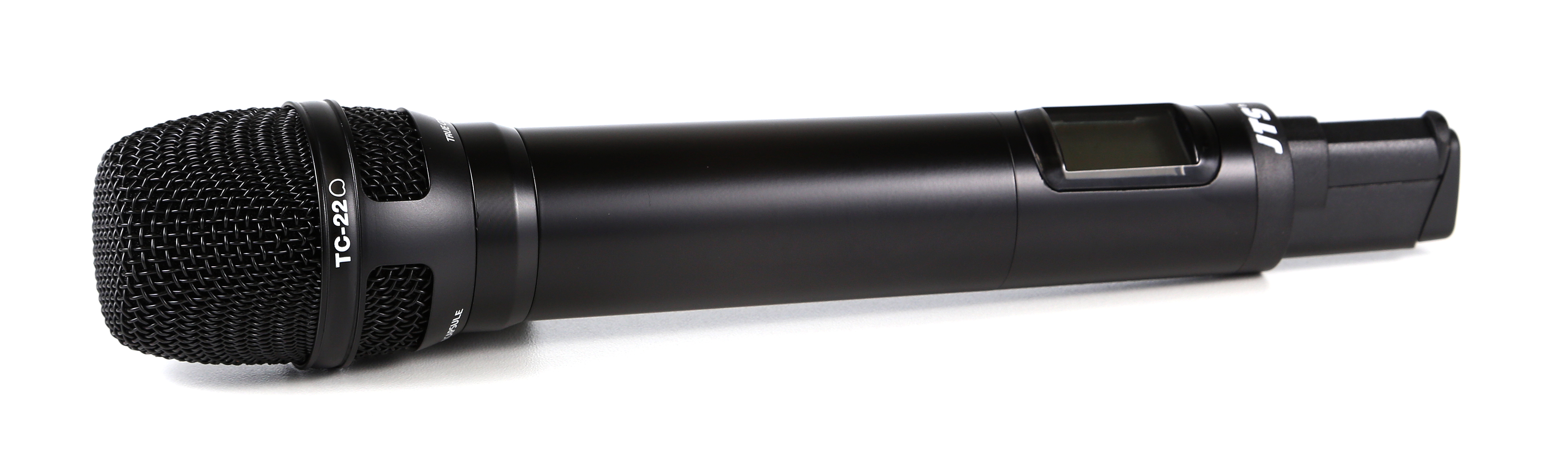

JSS-22
    The JSS-22 is the perfect partner for the JTS UF-20R.

    It is a super wideband transmitter that contains remoset technology where the receiver can wirelessly alter the transmitters settings at the touch of a single button.
    It is fitted with the TC-22 True Condenser capsule from JTS
  • Overview
  • Features
  • Specifications
The JSS-22 comes fitted with JTS' newest development TC-22 capsule that assures outstanding acoustic performance while minimizing touch noise.
The JSS-22 features an interchangable capsule design enabling the engineer or performer to place their favoured capsule choice in the JSS-22 transmitter body, allowing for a truly unique and personal sound.

The JSS-22 is also rechargeable with the CH-2 and CH-8 wireless charging stations.
It is designed with a slot-in charging feature with two AA NiMH rechargable batteries (not included).

A sliding cover design is applied to prevent the user or performer from touching the setting keys unintentionally, it also hides away the options to change these settings.
  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Adjustable transmission power between Low and High
  • Low cut function.
  • JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
  • Interchangeable capsule design for various choices including some classic capsule modules.
  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.
Code: 81250
Bandwidth: 60-75MHz Wideband
Carrier Frequency: UHF 606 - 681MHz
Frequency Prearation: PLL Synthesized Control
RF Output: Hi/Lo Options
Stability: < ±10KHz
Frequency Deviation: ±48KHz (Peak)
LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls: Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Frequency Response: 50Hz - 18kHz
Battery: 2x AA
Polar Pattern (TC-22 Capsule): Cardioid
Max SPL for 1% THD: 150dB
