JTS Professional USA

US-901D

US-901D

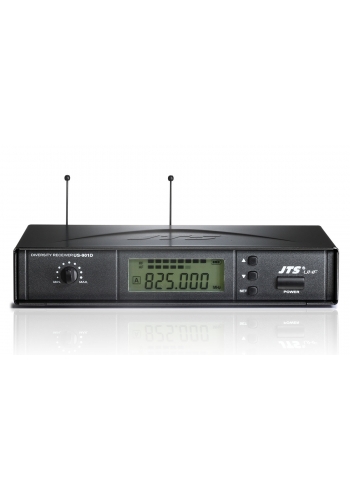

UHF PLL Wireless Receiver

* Single Transmitter operation.

* PLL synthesized technology with 193 selectable UHF channels.

* True Diversity Technology prevents dropouts in the RF link.

* Equipped with S.A.W. filter for interference free operation.

* Built-in mute, Noise and tone-key squelch.

* ”Lock-on” mode avoids accidental changes of frequency, sensitivity and power-off.

* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.

* Tuned antennas for the most stable RF reception.

* Compact half rack space design with all metal receiver housing.

Code:	81275
Net Dimension (WxHxD):	212 x 40 x 125mm
Frequency Preparation:	PLL Synthesized Control
Carrier Frequency Range:	863-865Mhz
S/N Ratio:	>105dB
T.H.D:	�10KHz
Display:	LCD
Display Contents:	Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Level
Controls:	Power On/Off, Frequency Up/Down, Lock-on, Scan, Audio Level
Audio Output Level:	-12dB
AF Output Impedance:	600Ω
Squelch:	Pilot Tone & Noise Mute
Operation Voltage:	12-18V DC, 200mA
Output Connector:	1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket
